Gel batteries are very affordable, have good resistance to high temperatures, and the gel electrolyte is less likely to leak.
It is mainly composed of solar panels, gel batteries, LED lamps, lamp poles, and intelligent controllers. The gel batteries have good resistance to overcharge and over-discharge, and can still maintain relatively stable discharge performance in low-temperature environments.
| No | Item | Parameters |
| 1 | TXLED05 LED Lamp | Power:30W Chip: Lumileds/Bridgelux/Cree/Epistar Lumens:100-120 Im/w Voltage: DC 12V Color Temperature:3000-6500K |
| 2 | Solar Panels | Power:90W Nominal Voltage:18V/17.5V Efficiency of Solar Cells:18% Material: Mono Cells/Poly Cells |
| 3 | Gel Battery | Capacity:60AH Nominal Volage:12V |
| 4 | Controller | Rated Current:5A Nominal Voltage:12V |
| 5 | Pole | Height:6m(A); Diameter:60/160mm(d/D); Thickness:3.0mm(B); Flange Plate:280*14mm(W"T) |
| 6 | Anchor Bolt | 4-M18 |
| 7 | Cables | 15m |
| 8 | Working Time:12 hours per day,2 days backup | |
Because solid gel electrolyte has low internal resistance, stable charge/discharge efficiency, and excellent performance in both low-temperature (-10°C) and high-temperature (60°C) environments, it is suitable for a variety of climates and eliminates the risk of leakage.
A long service life, slow plate corrosion, and resistance to deep discharge damage are ensured by more than 1500 charge/discharge cycles, which lowers the frequency of replacement costs.
Its sealed design ensures worry-free long-term use by removing the need for frequent water replenishment, which makes it appropriate for remote locations or situations requiring inconvenient maintenance.
Minimal environmental impact following disposal, free of heavy metal contaminants. Safety is improved by the gel material's flame retardancy, which lowers the possibility of short-circuit fires.
High affordability for field access roads, rural roads, and village roads.
Gel batteries are corrosion-resistant, extremely temperature-adaptable, and able to function steadily in high-humidity and salt-spray coastal regions, northern high-altitude and cold regions, deserts, and Gobi deserts.

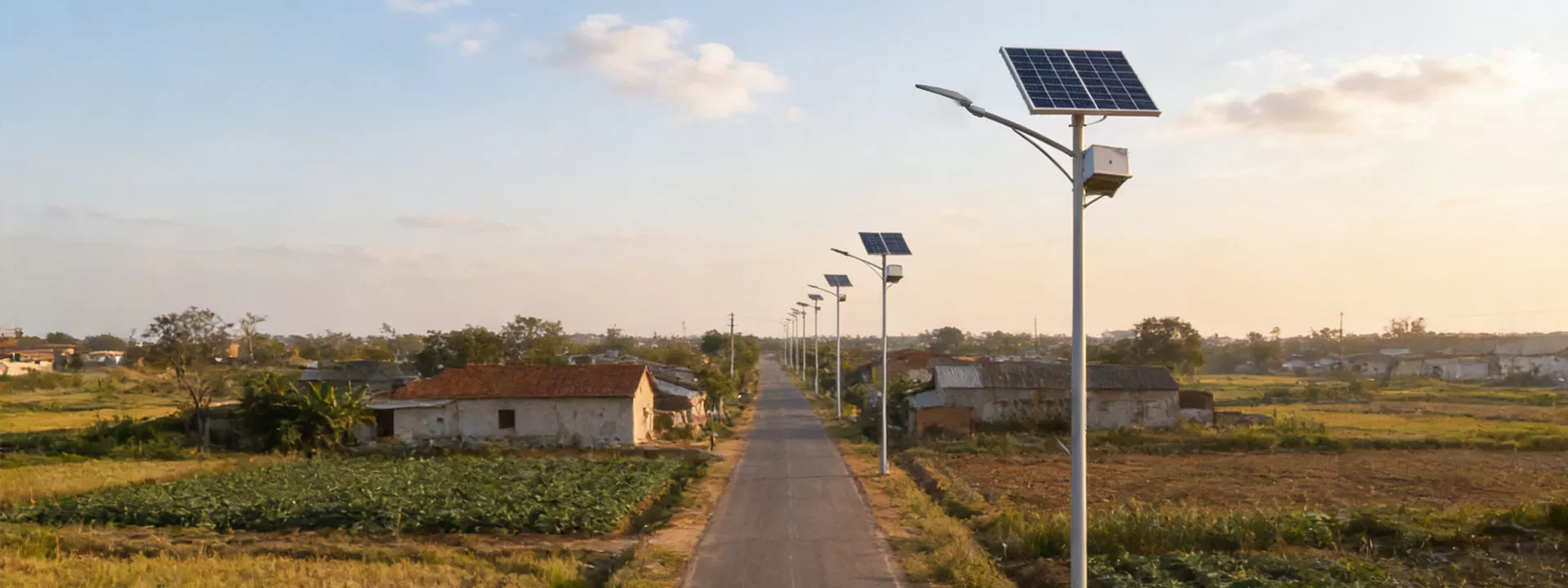

Long-term dependable lighting that is flexible enough to accommodate scattered lighting needs is appropriate for urban and suburban roads, park green belts, small squares, and rural cultural and sporting event venues.
Because gel batteries are flame-retardant and leak-proof, they are perfect for intricate settings with strict safety regulations, like security monitoring points, mining roads, and auxiliary roads in industrial parks.
