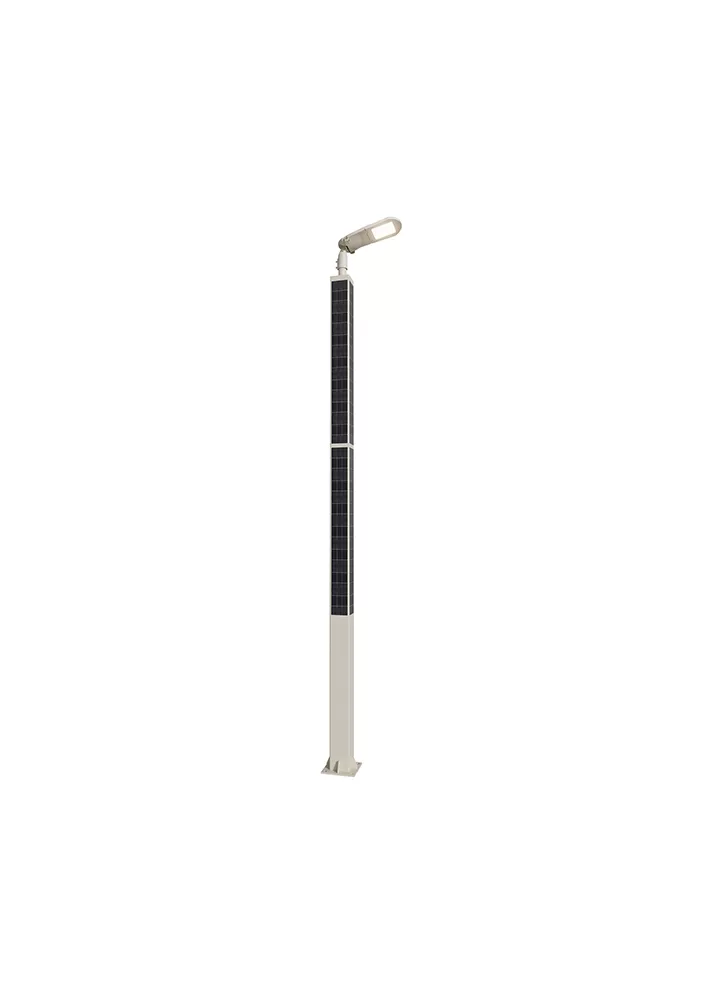

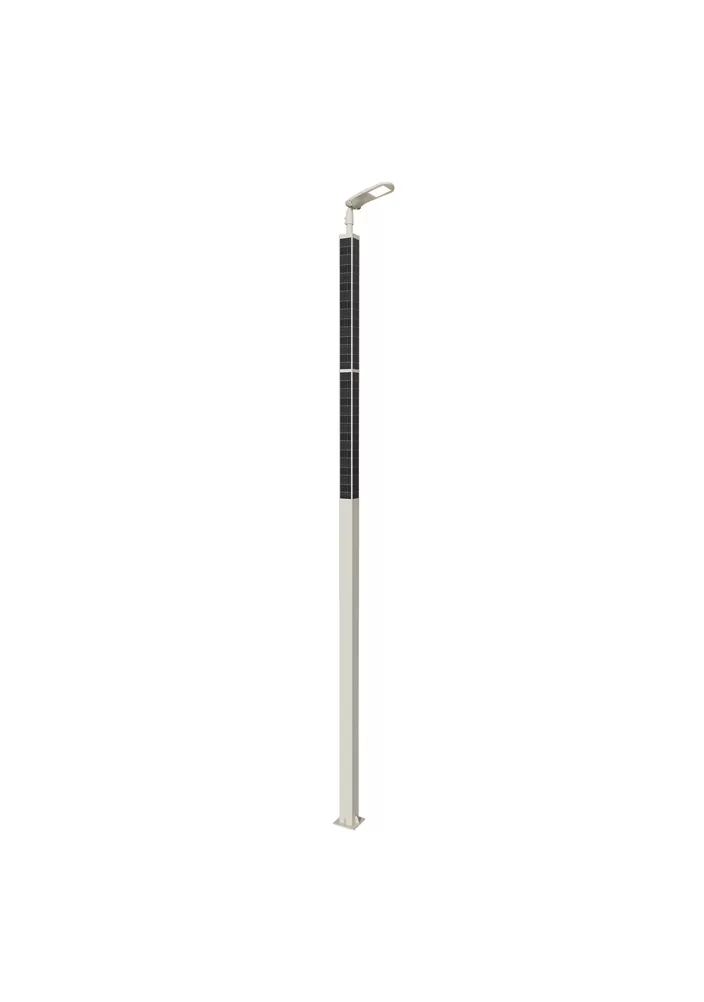

Four monocrystalline solar panels are mounted on the four sides of the square pole, which has high conversion efficiency and good weather resistance.
Using a square lamp post as a carrier, four solar panels are installed on its surface, which can be used in conjunction with garden light heads or street light heads.
| Garden Lighting | Street Lighting | ||
| LED Light | Lamp | TX151 | TX711 |
| Maximum Luminous Flux | 2000lm | 6000lm | |
| Color temperature | CRI>70 | CRI>70 | |
| Standard Program | 6H 100% + 6H 50% | 6H 100% + 6H 50% | |
| LED Lifespan | > 50,000 | > 50,000 | |
| Lithium Battery | Type | LiFePO4 | LiFePO4 |
| Capacity | 60Ah | 96Ah | |
| Cycle Life | >2000 Cycles @ 90% DOD | >2000 Cycles @ 90% DOD | |
| IP Grade | IP66 | IP66 | |
| Operating temperature | -0 to 60 ℃ | -0 to 60 ℃ | |
| Dimension | 104 x 156 x470mm | 104 x 156 x 660mm | |
| Weight | 8.5Kg | 12.8Kg | |
| Solar Panel | Type | Mono-Si | Mono-Si |
| Rated Peak Power | 240 Wp/23Voc | 80 Wp/23Voc | |
| Efficiency of Solar Cells | 0.164 | 0.164 | |
| Quantity | 4 | 8 | |
| Line Connection | Parallel Connection | Parallel Connection | |
| Lifespan | >15 years | >15 years | |
| Dimension | 200 x 200x 1983.5mm | 200 x200 x3977mm | |
| Energy Management | Controllable in Every Application Area | Yes | Yes |
| Customized Working Program | Yes | Yes | |
| Extended Working Hours | Yes | Yes | |
| Rmote Control(LCU) | Yes | Yes | |
| Light Pole | Height | 4083.5mm | 6062mm |
| Size | 200*200mm | 200*200mm | |
| Material | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Spray Powder | Spray Powder | |
| Anti-theft | Special Lock | Special Lock | |
| Light Pole Certificate | EN 40-6 | EN 40-6 | |
| CE | Yes | Yes |

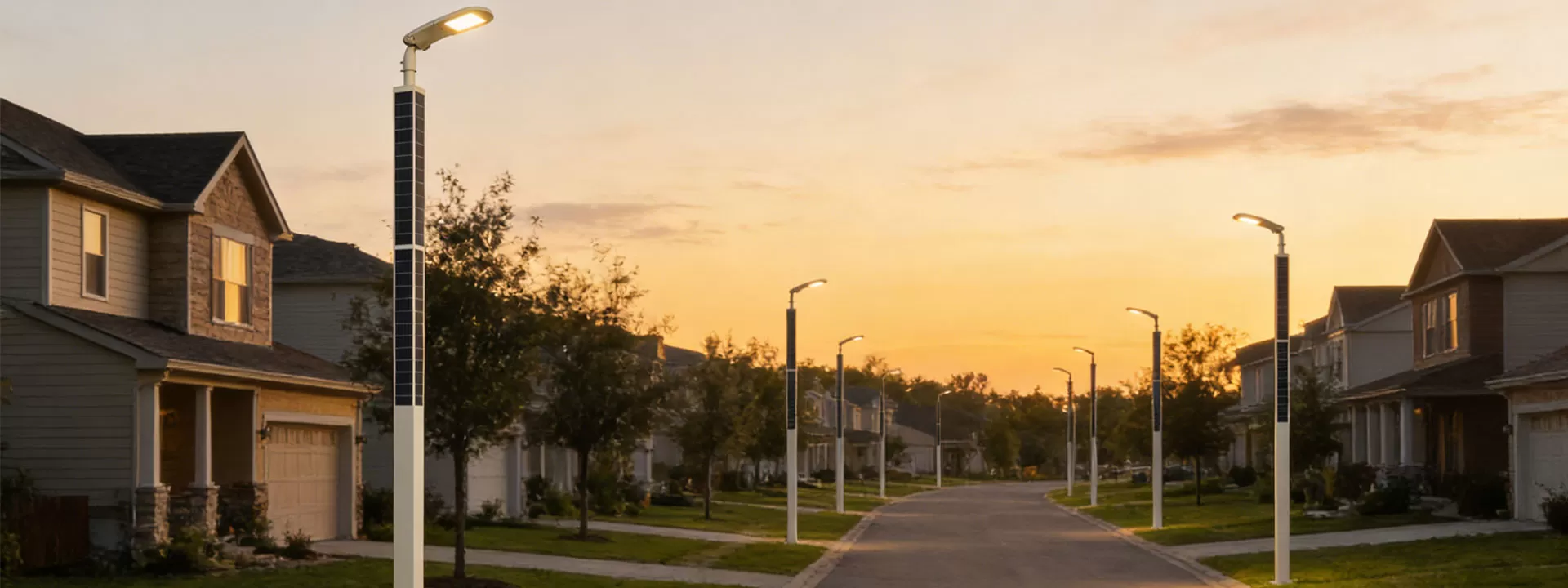

Rigid solar panels are bonded to square poles and installed on all four sides. It captures light from four directions. Power generation efficiency is higher at midday with multidirectional sunlight than single-panel panels, and it also makes effective use of oblique sunlight in the morning and evening.
Compared to a round pole, the square pole structure has structural advantages that make it simpler to secure the panels. Additionally, because of its 30% higher wind resistance, it is appropriate for high-rise residential areas, open plazas, and other strong wind environments.
The stiff panels are more resilient to damage from children playing in the neighborhood and from accumulated fallen leaves because they are impact and scratch resistant.
Due to their ability to withstand collisions, square solar pole lights are appropriate for high-traffic areas such as main entrances and walkways in smart communities.
Because of their straightforward and contemporary design, square solar pole lights are perfect for commercial plazas.
Square solar pole lights can be equipped with surveillance cameras and broadcasting systems, making them suitable for use on campuses as well.
