It includes LED smart lighting with light-sensing/human-sensing dimming, as well as remote control, data visualization, and coordinated scheduling via an IoT platform.
| No. | ltem | Name | Model | Technical parameters | QTY | Units | Remark |
| 1 | Inteligent lighting | Smart city platform software | V1.0 | Lighting control system, advertising release, video monitoring, environmental monitoring system, WIFI management, charging pile management system, broadcast system, emergency call system | 1 | set | Cloud /local deployment |
| Single modulation controller | TX10-R1AM | IP65waterproof, a dimming output, a single lamp current, voltage, power, broken lamp detection function | 1 | set | zigbeel Lora/NB optional | ||
| 2 | Environmental monitoring equipment | Meteorological sensor | TX10-FRT-S1A | Ten in one: humidity, air pressure, wind speed, wind direction, temperature, decibel, PM2.5, PM10, rainfall, radiation | 1 | set | |
| 3 | WIFI cover system | WIFI-APfacility | TX10-MX-AP | Frequency:2.4 GHz Can be equipped with a variety of outdoor antenna seamless roaming, load balancing 500MW power,300Mbps transmission rate, Chinese SSID supports VLAN isolation Coverage of 100 meters, concurrent access to 100 points Support2N-port antenna interface | 1 | set | |
| WIFI-AC facility | TX10-MX-AC | The 128 pcs AP centralized control platform is based on embedded architecture, to realize multi-service high-speed forwarding Support the IEEE802.11 a/b/g and Standard IEEE802.11 n Realize centralized access and centralized deployment of AP | 1 | set | |||
| 4 | Video monitoring system | High-definition camera | TX10-HK-S5A | 7"ball machine, 300W pixels Support up to 2048×1536@30fps HD picture output Support 960p-60fps,720p-60fps high frame rate output Support 360°horizontal rotation, vertical direction-15°to 90° Support 300 presets,8 cruise scan support Haikang SDK, ONVF, CGI, PSIA GB/T28181, E family protocol and fluorite cloud access lightning protection,anti-surge, anti- surge,IP66 protection level Support 1-way audio input and 1-way audio output Built-in 2 alarm input and 1 alarm output, support alarm linkage function | 1 | set | 7"ball machine |
| Camera holder | TX10-HK-F01 | wall mounting bracket, outer wall mounting, outline size:97×182×305mm,weight:1070g | 1 | set | |||
| 5 | Emergency call system | One-button cll terminal equipment | TX10-SR-S1A | HD camera, active real-time monitoring,720P CMOS camera Full duplex voice intercom, audio code: G.711 G713, PCM, 3m distance intercom, speaker: 803w Dynamic noise reduction, clear sound pickup, signal-to-noise ratio >85db outdoor rain protection, IP52. RJ45 interface, support TCP/IP, DHCP | 1 | set | |
| Speakers | TX10-SR-F01 | Theory power 1.4 Wx2 impedance 4Ω SNR>80 Sensitivity 450+50 mv | 1 | set | |||
| Goose neck microphone | TX10-SR-F02 | Use for network call microphone input | 1 | set | |||
| 6 | Audio playback system | IPspeaker | TX10-NAS-S1A | Rated power:30W,input power:24V,audio input sensitivity:0.775v Frequency response:50hz-15khz(±3dB)Size: 450*88.1*83.2 | 1 | set | |
| Broadcast calling host | TX10-NAS-S1B | Built-in loudspeaker and microphone, can restore remote sound and collect on-site sound True color LCD displays the login status, volume value, partition list, and other relevant information Input power specification DC12V2A | 1 | set | |||

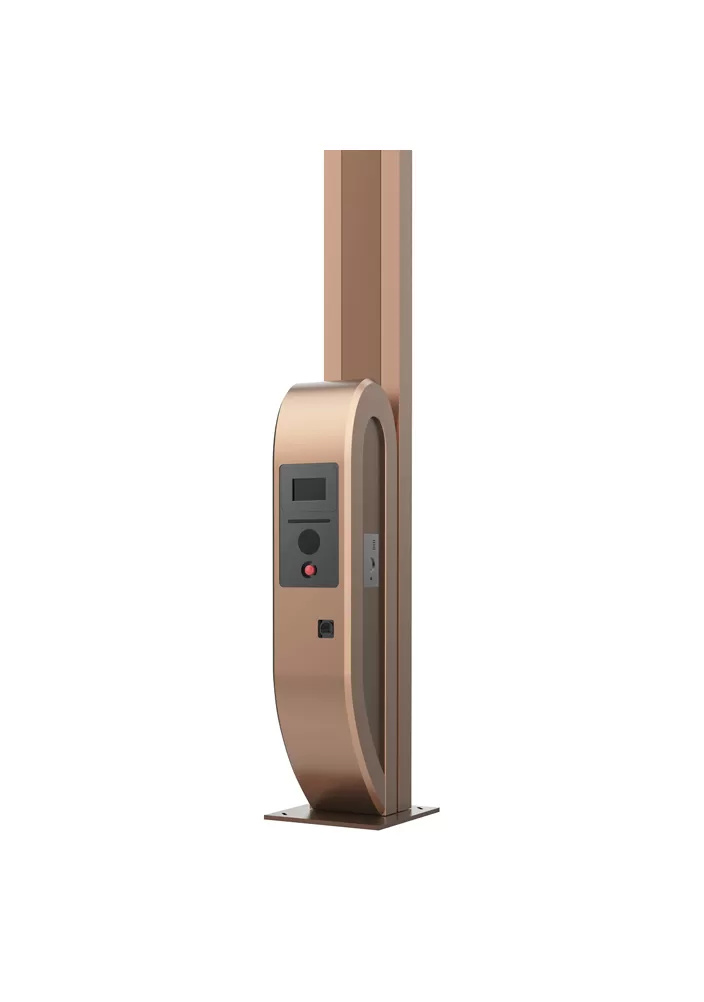

| 7 | Green Charging system | Charging pile | TX10-TLE-S1A | In station form: embed ded Installation; Working environment temperature: -30℃~+50℃ Input voltage:AC220V±10%;Charging mode single charge Total power:7KW; Machine performance: efficiency≥99% Startup mode: swipe card, APP scan code: protection level≥IP54 | 1 | set | |
| 8 | Adverising system | LED Full color screen | TX10-LCF-S3A | Rated current:40(mA) Rated voltage:5(V)module size:256*128(mm) Size:740*512 environment: outdoor | 1 | set | outdoor4-8m |
| Fullcolor control board card | TX10-LCF-F01 | Full color control card/support LED screen P2.5 /P4,P5/P10 | 1 | set | |||
| 9 | Poly box | Switch + concentrator | TX10-GW-ZH | IEEE 802.3、IEEE 802.3u、IEEE 802.31、IEEE 802.3z、IEEE 802.3at Total backplate bandwidth:20Gbps Packet forwarding rate:14.88mpps Size:143x104 x48mm(width x depth x height)Weight:0.85Kg | 1 | set | The company jubogen supports point-to-point access, Ring network is not supported |
| 10 | Accessories | Control box, lightning protection module, optical fiber jumper, connection wire, power supply, auxiliary materials, wiring line | 1 | set | |||
| 11 | After-sales service | Technical commissioning/ after sales | 1. Provide free warranty service for the product The warranty period shall be one year from the date of product acceptance and official operation 2. Upon the expiration of the warranty period, The maintenance service shall continue to be provided according to the notice of the demander 3. Provide product debugging, training, and other after-sales services 4, within 24 hours to respond to the product failure, or need to replace components and accessories, and as soon as possible to send technology, remote or on-site maintenance, or provide technical support | 1 | set | ||

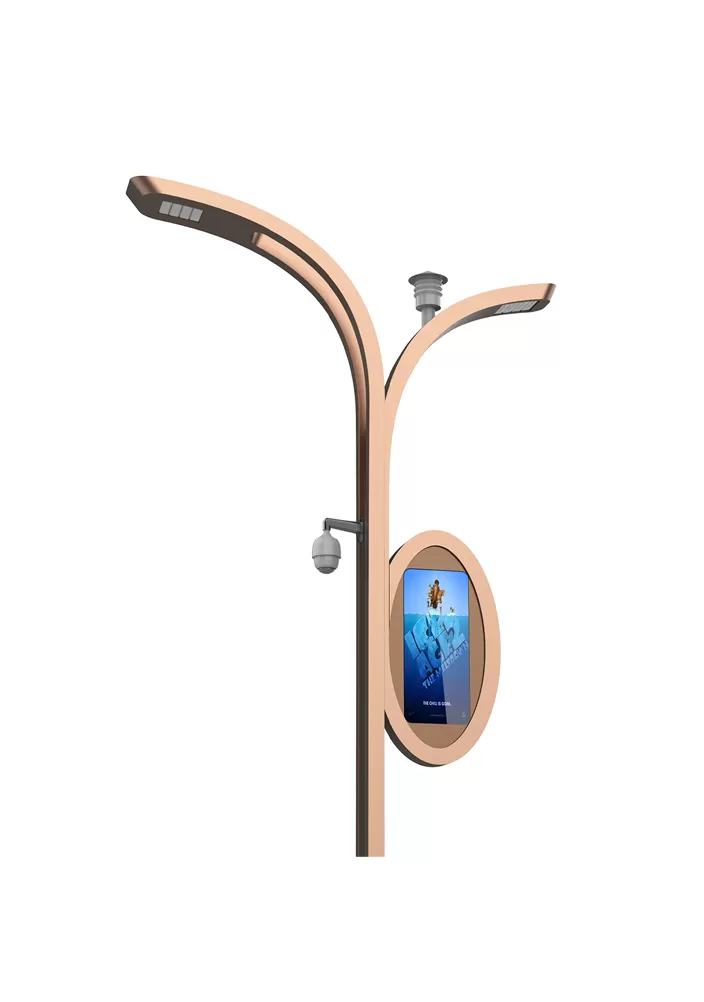

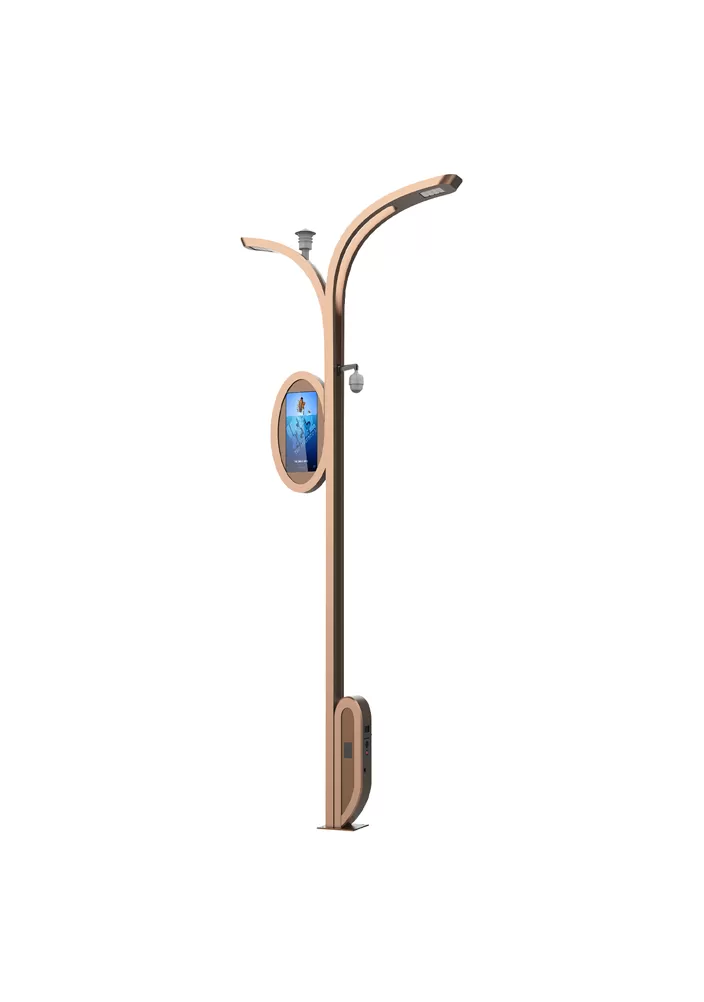

A smart pole consists of a main pole, an intelligent controller, sensing modules (cameras, environmental sensors, etc.), communication modules (5G micro base stations, WiFi, etc.), and an energy storage unit. In contrast to conventional light poles, it has intelligent management features that enable remote lighting brightness adjustment and Internet of Things (IoT) equipment status monitoring. Additionally, it can facilitate emergency broadcasting, video surveillance, and environmental data collection. To meet the requirements of building smart cities, some models incorporate additional features like information display screens and charging piles.

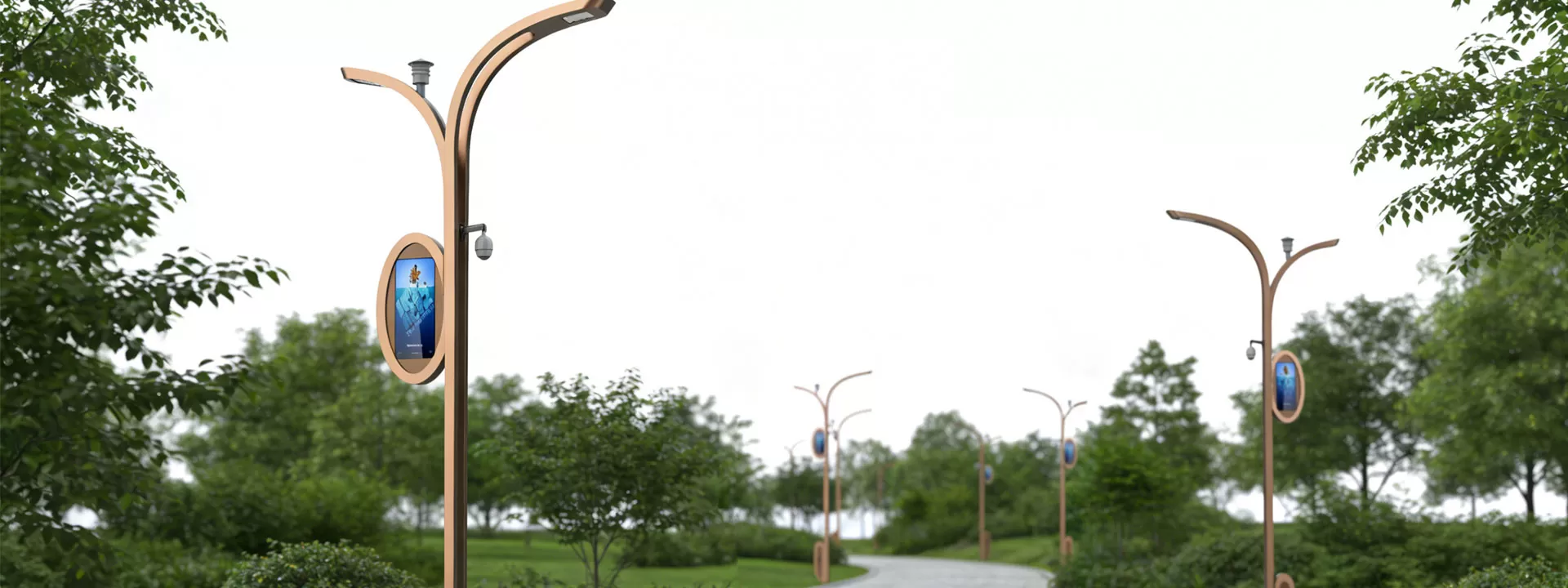

Check for rust, cracks, and tight foundation bolts on a monthly inspection of the pole structure. Dust and grime should be removed from the sensors and pole.
Pay particular attention to examining the sensitivity of sensors like light and human body sensors, the stability of communication between remote control systems, and the functionality of auxiliary devices like charging piles and displays.
Every quarter, replace old light sources and clean the lamp covers. To stop leaks, examine the wiring's grounding stability and insulation. Check for pole tilting and foundation settlement following extreme weather, and fix any damaged wiring or sensors.
Create an electronic log to document information about component replacement, troubleshooting, and inspection data. In order to enable preventative maintenance and guarantee steady operation of smart functions, background data monitoring is used to forecast equipment wear and tear.
