This powder coating has a uniform thickness of 60-120μm, strong adhesion, and rich color. Gray, white, and black are common colors, but custom colors can also be created as needed.
| Material | Commonly Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 | |||||||
| Height | 4M | 5M | 6M | 7M | 8M | 9M | 10M | 12M |
| Dimensions(d/D) | 60mm/140mm | 60mm/150mm | 70mm/150mm | 70mm/170mm | 80mm/180mm | 80mm/190mm | 85mm/200mm | 90mm/210mm |
| Thickness | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.5mm | 3.75mm | 4.0mm | 4.5mm |
| Flange | 260mm*12mm | 260mm*14mm | 280mm*16mm | 300mm*16mm | 320mm*18mm | 350mm*18mm | 400mm*20mm | 450mm*20mm |
| Tolerance of dimension | ±2/% | |||||||
| Minimum yield strength | 285Mpa | |||||||
| Max ultimate tensile strength | 415Mpa | |||||||
| Anti-corrosion performance | Class II | |||||||
| Against earthquake grade | 10 | |||||||
| Color | Customized | |||||||
| Surface treatment | Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performance Class II | |||||||
| Shape Type | Conical pole, Octagonal pole, Square pole, Diameter pole | |||||||
| Arm Type | Customized: single arm, double arms, triple arms, four arms | |||||||
| Stiffener | With a big size to strengthen the pole to resist the wind | |||||||
| Powder coating | The thickness of powder coating is 60-100 μm. Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance. The surface is not peeling even with a blade scratch (15×6 mm square). | |||||||
| Wind Resistance | According to local weather conditions, the General design strength of wind resistance is ≥150KM/H | |||||||
| Welding Standard | No crack, no leakage, no welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects. | |||||||
| Hot-Dip Galvanized | The thickness of hot-galvanized is 60-100um. Hot Dip Inside and outside surface anti-corrosion treatment by hot dipping acid. which is in accord with BS EN ISO1461 or GB/T13912-92 standard. The designed life of the pole is more than 25 years, and the galvanized surface is smooth and the same color. Flake peeling hasn't been seen after the maul test. | |||||||
| Anchor bolts | Optional | |||||||
| Material | Aluminium,SS304 is available | |||||||
| Passivation | Available | |||||||

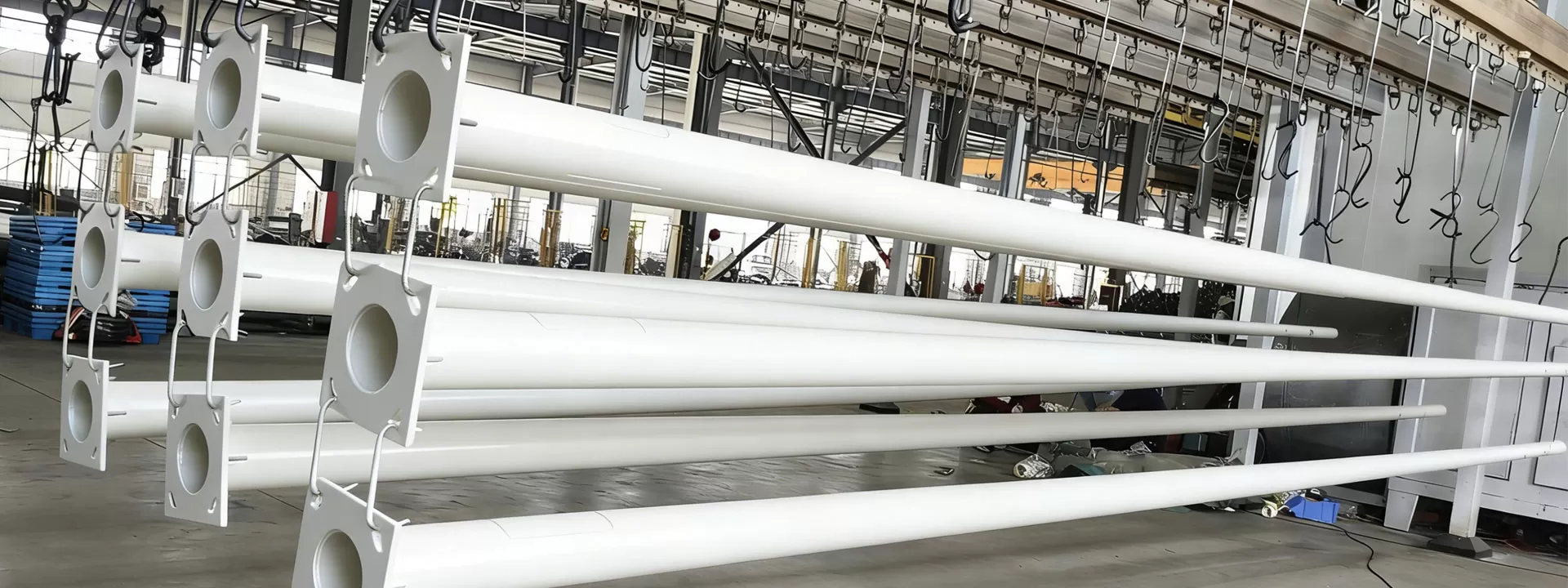

A finished pole that has undergone surface pretreatment and electrostatic powder coating to produce a high-polymer powder coating is called a powder-coated pole. Corrosion resistance and aesthetics are combined. An electrostatic spray gun is used to evenly spray epoxy resin and other powder coatings onto a galvanized pole base, which is then cured at a high temperature to create a dense coating. Usually 80–100 micrometers thick, the coating has a wide range of colors, including custom matte and high-gloss finishes, and strong adhesion. Compared to a single galvanized pole, it has superior outdoor UV resistance and a more appealing appearance.

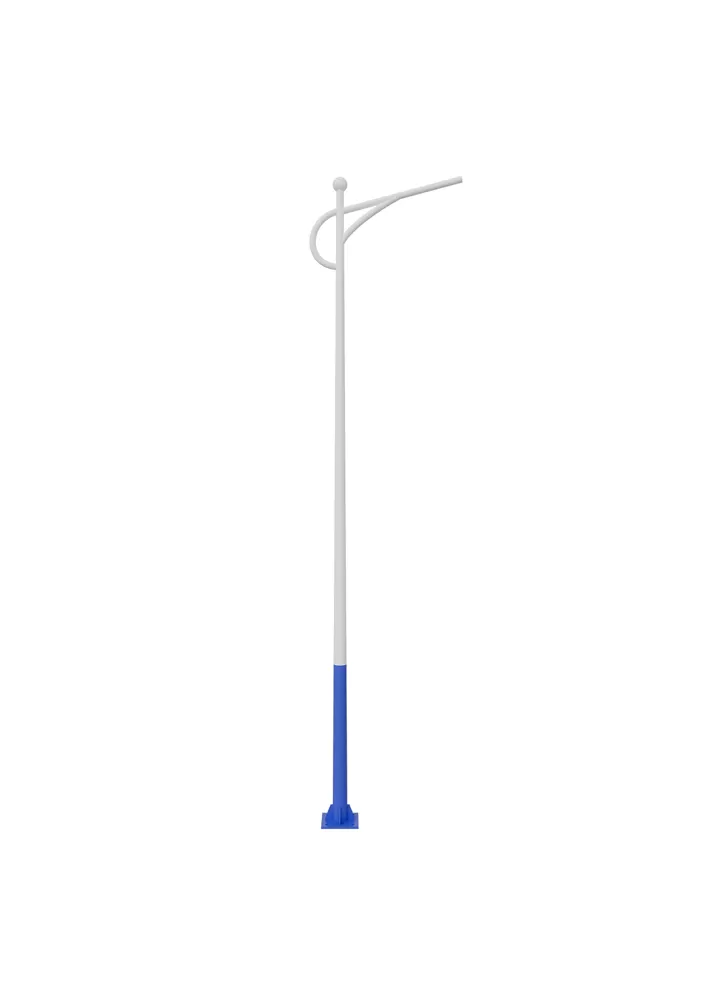

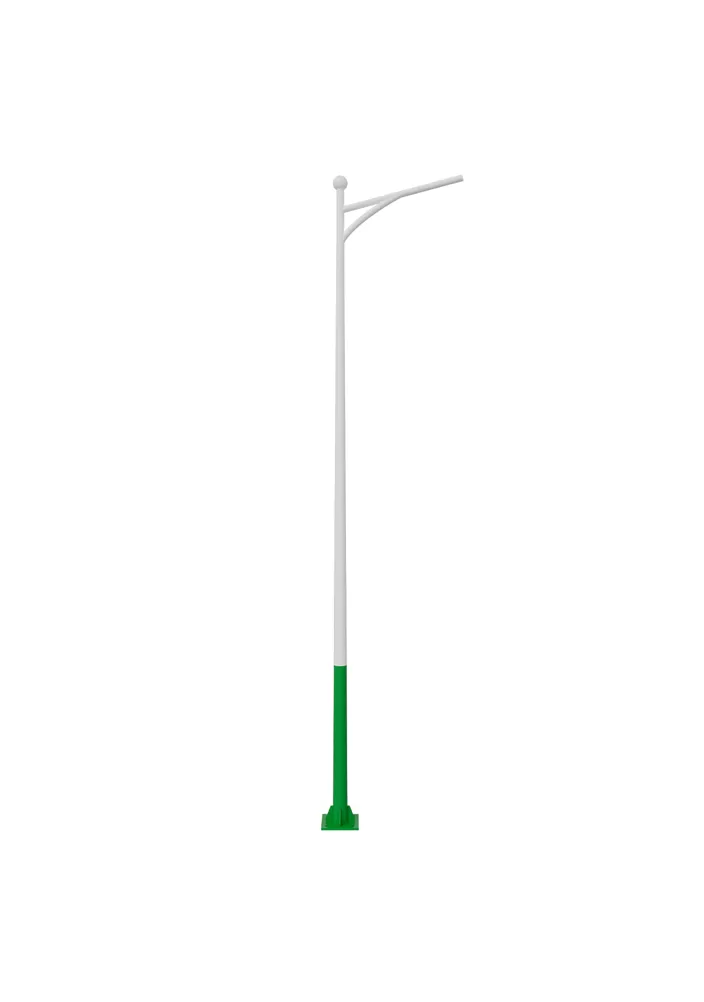

Cultural and tourism towns and folk-style streets are ideal locations. The coating texture complements the street's aesthetic, and customizable colors like gray brick and retro brown are available.
Commercial plazas and major city roads are also very appropriate. Wear-resistant coating guards against scratches from cars and pedestrians, and a variety of colors can complement municipal landscape design.
High-end residential neighborhoods and parks: The anti-aging qualities of the matte or high-gloss coating complement the park's aesthetic and are appropriate for its humid, green surroundings.
