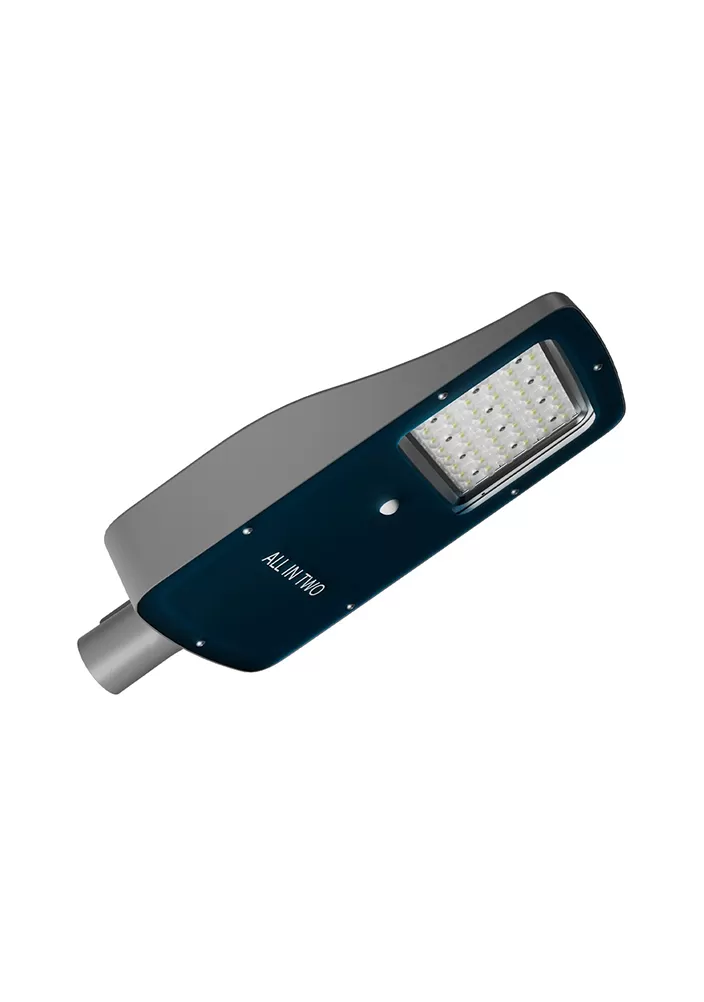

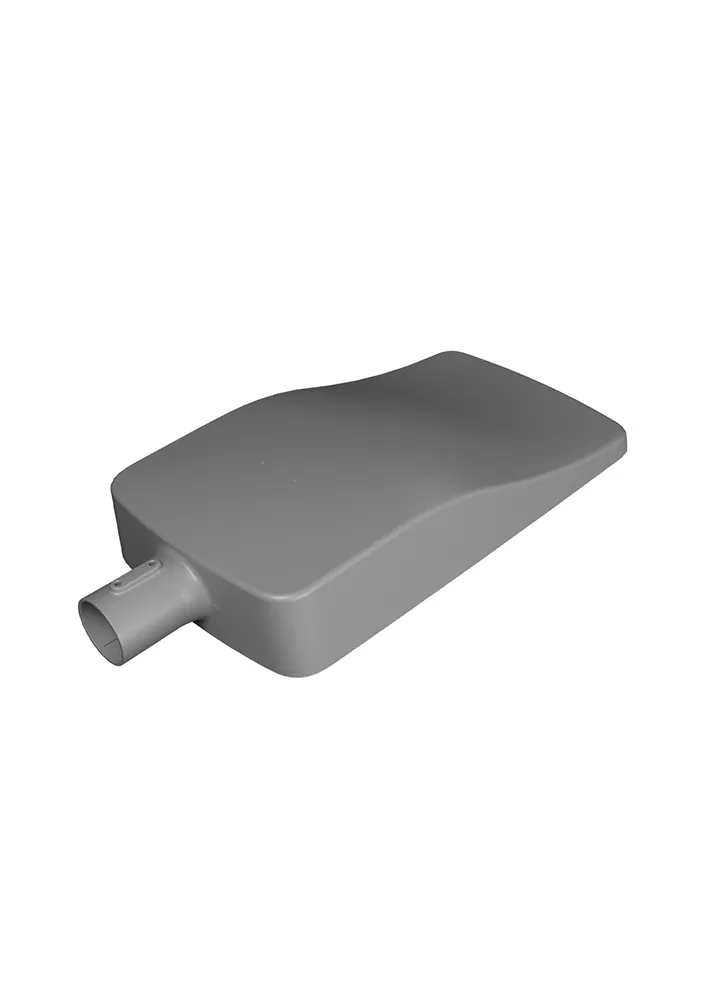

The lamp has a built-in high-performance lithium battery with the advantages of stable capacity, high charging and discharging efficiency, and strong
adaptability to low temperatures. It can efficiently store the electricity converted from solar energy during the day and meet the needs of 8-12 hours of
continuous lighting at night.
Basic Parameters
Height: 8-12m
Available Colors: White/Gray/Gold
Main Pole Options: Square Pole/External Slide/Four-Sided Grooves
| Model Number | TX-AIT-1 | Working Temperature | -10℃~+60℃ |
| MAX Power | 60W | Product Weight | 8.5kg |
| System Voltage | DC 12V | LED Lifespan | >50000H |
| Lithium Battery MAX | 12.8V 60AH | Controller | PWM/MPPT Smart Controller |
| Type of light source | LUMILEDS3030/5050 | Mount Diameter | Φ60mm |
| Light distribution type | Bat wing light distribution（150°×75°） | Lamp Dimension | 531.6×309.3×110mm |
| Luminaire Efficiency | 130-160LM/W | Package Size | 660*335*160mm |
| Color Temperature | 3000K/4000K/5700K/6500K | Suggested mount Height | 6m/7m |
| CRI | ≥Ra70 | ||
| IP Grade | IP65 | ||
| IK Grade | IK08 |
The lamp's built-in lithium battery offers robust storage capacity, ensuring stable lighting in all weather conditions.
One-touch control allows for simultaneous on/off control of all streetlights, including brightness mode switching and fault self-diagnosis.
Its patented design, featuring a streamlined body and minimalist color scheme, is a leading choice for green lighting, combining
technological innovation with aesthetic appeal.

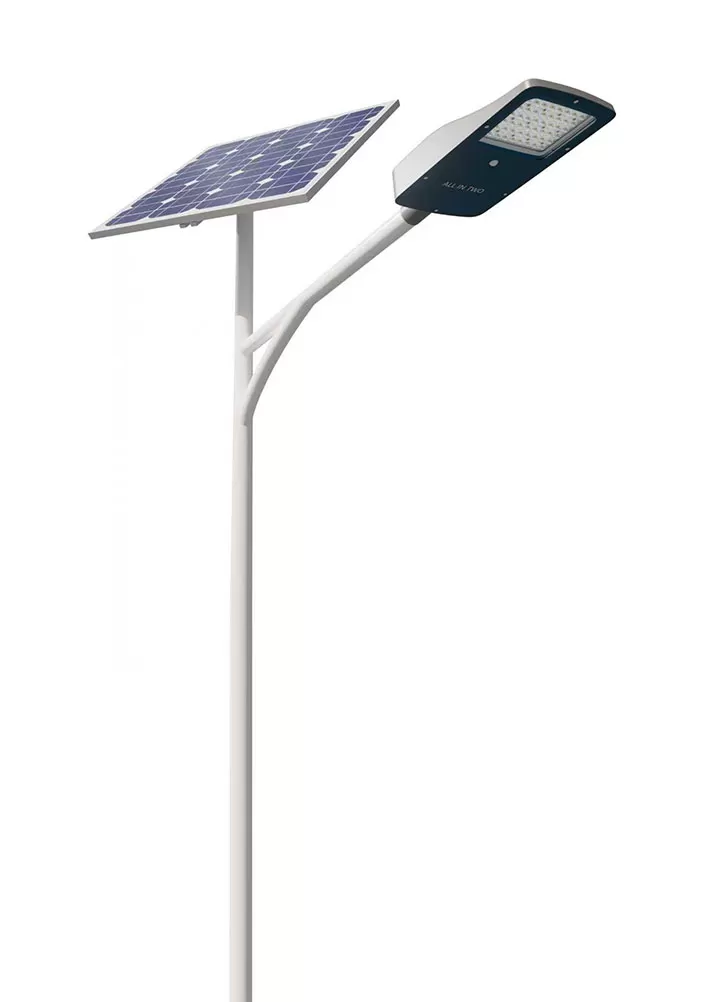

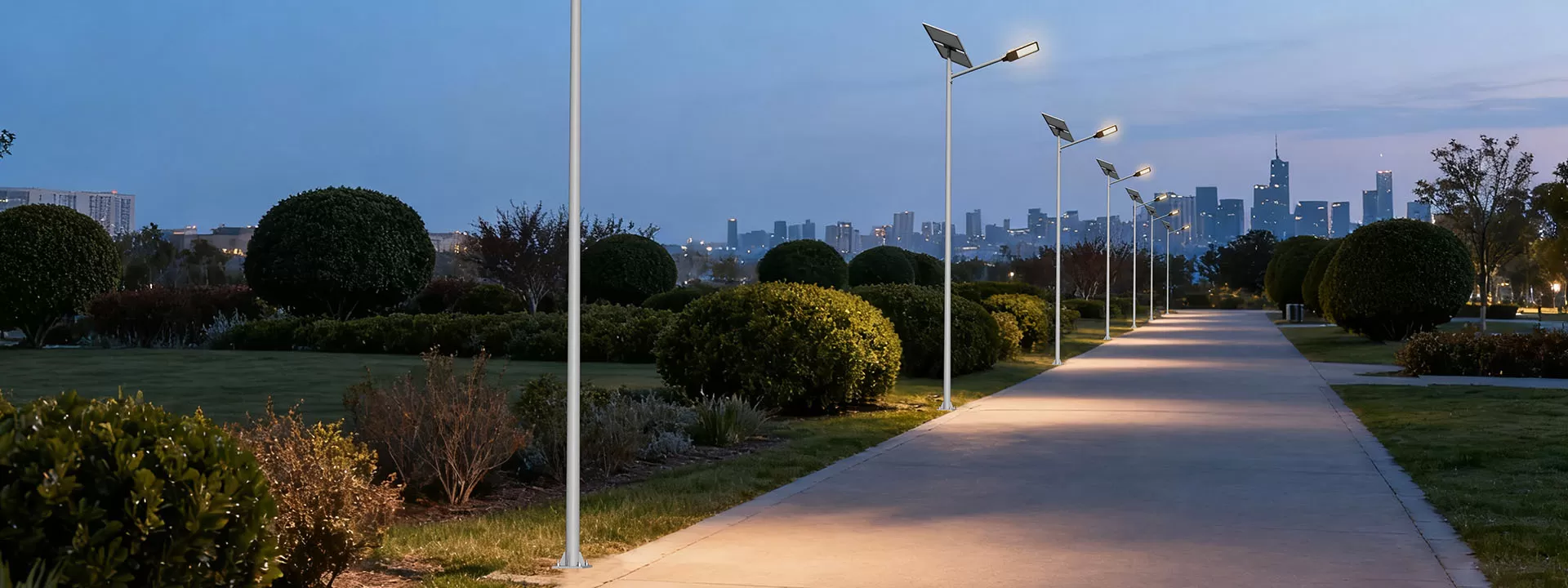

ALL in Two is easy to install, eliminating the need for complex wiring and installation, significantly saving time and costs.
The built-in lithium battery design eliminates the need for separate wiring and mounting between the battery and the luminaire. Pre-assembled at the factory, on-site installation requires only securing the luminaire body, eliminating the need for planning the battery placement. No external accessories such as battery boxes and protective brackets are required, reducing material costs.
The lithium battery is closer to the luminaire's light source and driver module, shortening the power supply line and reducing line losses during current transmission, indirectly improving energy efficiency.
The built-in lithium battery directly withstands heavy rain, dust, and high temperatures, offering greater protection and stability than an external battery box.
The battery is hidden inside the luminaire, minimizing exposure risks. This eliminates the need for additional security measures such as anti-theft locks and monitoring, reducing maintenance risks.
